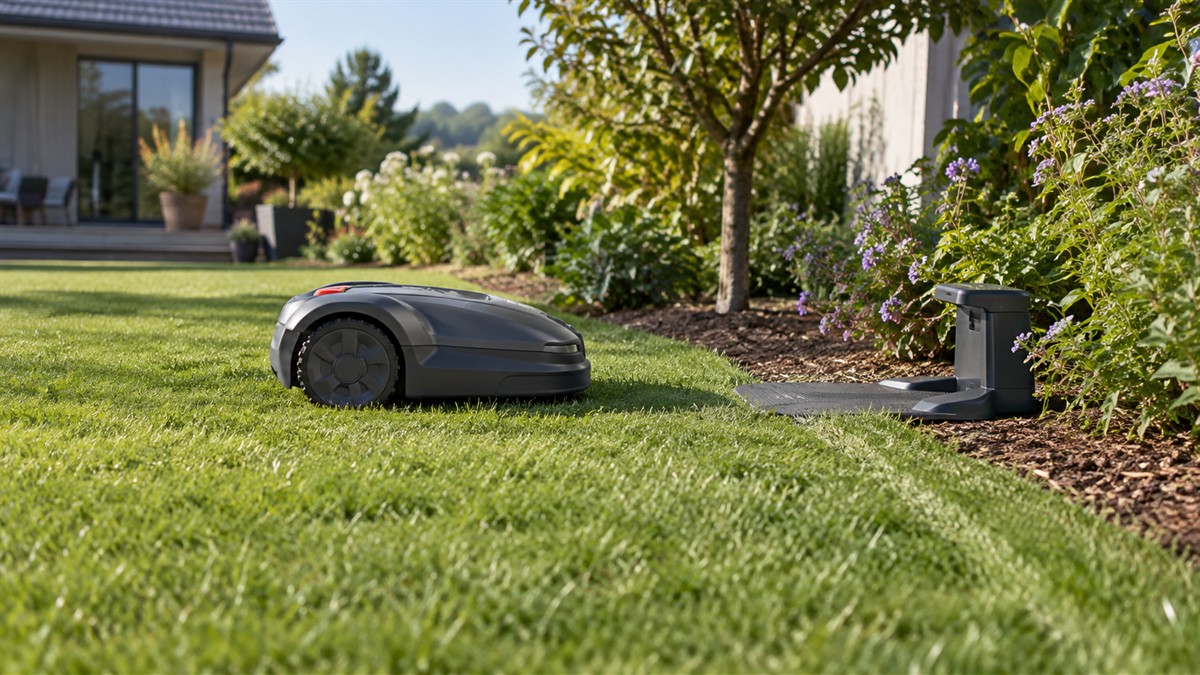

How Robot Mowers Find Their Charging Station
As an Amazon Associate we earn from qualifying purchases.
If you want to know how robot mowers find their charging station, the short answer from the manufacturer pages we opened is this: the mower heads back to the dock when its battery is low or when a mowing task ends, and a guide wire can help it get there in complex yards. Whether docking works depends on where the station sits, what metal is nearby and whether the power supply is sound. This guide walks through each check in order and explains the lights and messages that point to a problem.
Quick answer
- The Toro Haven manual says the mower goes to its charging station when the battery is too low for mowing or when a mowing task ends.
- Husqvarna describes a guide wire that brings the mower back to the station when needed, which cuts search time in complex gardens.
- Metal near the station can interfere with its signal, so keep reinforcement bars, metal edging and coiled low-voltage cable away from it.
- A dark station light or a “No loop signal” message points first to the outlet, the power supply and the low-voltage cable.
How the mower decides to go home
The Toro Haven operator manual gives the mower two reasons to head for the dock. The first is the battery. According to the charging overview, the mower goes to the charging station when the battery charge is too low for mowing. The second is the end of a mowing task, when the mower reaches the end of its job. The docking page states the low-battery case in the same terms: the mower “automatically docks in the charging station if the battery is too low.”
The sources we opened do not give a battery level at which the trip starts, so this post does not state one. If you need that number for a specific model, the owner’s manual for that model is the place to look. If you are still choosing a model, the pros and cons of robotic lawn mowers post sets out the tradeoffs.
Sending the mower home by hand
You can also start the trip yourself. The Toro docking page says to “press the home button on the control panel to manually send the mower to the charging station.” After that, the mower “will remain in the charging station until it is fully charged or until the next scheduled mowing task.” For any other way to stop or pause a queued task, check the control panel section of your model’s manual.
Why a return can fail
A return trip depends on the mower being able to reach the dock from where it stopped. The Husqvarna placement guide asks for a clear path: “Ensure the mower can enter, align, and reverse into the station without obstructions.” An obstruction in the approach is one thing to check when a return fails. Clear the approach, then recheck the station position and the lights described below.
What the guide wire and the signal do
The Husqvarna guide wire page explains the purpose of the wire in plain words. The wire navigates the mower “back to the charging station when necessary, reducing search times, particularly in complex gardens.” It also says the mower “varies its route to and from the charging station to prevent leaving tracks on the lawn.” So in the manufacturer’s description, the guide wire does two jobs: it gives a faster route home in complicated yards, and it changes the route so the grass is not worn along a single line.
The same page says the number of guide wires depends on the model, and that a guide wire is not optional for every model. Its words are: “Depending on the model, using a guide wire may be required.” Check your model’s guide before you decide whether a guide wire applies to your yard. If you are weighing models that skip perimeter wire, see robot mowers that run without perimeter wire. Wire layout is a separate topic, and this post does not cover it.
Metal near the station
Husqvarna’s placement guide warns about metal. It says to “Avoid having metal objects near the station” because metal “may interfere with the charging station signal.” The examples in the guide are reinforcement bars, metal edging and coils of low-voltage cable. The same warning names the wires as well as the station, so metal along the wire path is part of the same check.
The guide does not say how far away metal must be before it matters. If the mower misses the dock with metal nearby, the guide’s advice is to keep metal away from the station and the wires.
The sources we opened do not explain how the mower reads the station signal. They name what weakens the signal, but they do not describe the signal itself, its range or how the mower decides it has found the dock. This post does not guess at that process.
Light and message states you can check
Use the station light, the mower display and the app together. The table lists the states named in the manufacturer pages, with the page that names each one.
| Light or message | What the manufacturer says it means | Source |
|---|---|---|
| Solid blue on the station | Weak boundary wire signal (may still operate normally) | Husqvarna US placement guide |
| Flashing blue on the station | No loop signal detected (troubleshooting required) | Husqvarna US placement guide |
| Flashing yellow on the station | Guide wire broken or disconnected (repair needed) | Husqvarna US placement guide |
| Station light off | It can indicate cable or power supply issues | Husqvarna US light guide |
| “No loop signal” or “Charging station blocked” on the display or app | Shown alongside a dark station light, per the Husqvarna guide | Husqvarna US light guide |
| Dock and mower lights both off after docking | The mower is not charging | Toro Haven charging overview |
The blue and yellow states come from the LED table in the Husqvarna placement guide. The light guide lists the common causes of a dark light: no power at the outlet, low-voltage cable ends that are not properly connected, a damaged low-voltage cable, the wrong cable type, or a station damaged by a storm. Those causes are the basis for the checks below.
Checks in order when the station light is off
- Confirm the outlet has power. Husqvarna’s checklist asks: “Is the power outlet (A) working?” It suggests a known working device: “For example a lamp or a kitchen appliance.”
- Reseat both ends of the low-voltage cable. The guide says: “Disconnect and re-connect both ends of the low-voltage cable (C).”
- Inspect the cable and its ends. The guide says: “Check that there are no visible damages along the low-voltage cable and its ends.”
- Confirm the cable type. The guide says: “The low-voltage cable is not the same for all product models.” If you have more than one cable on hand, use the one your model needs.
- After a storm, look at the station itself. The guide lists “Damaged charging station, for example after a thunderstorm” as a cause.
If the problem remains after these checks, or if the station stopped working after a thunderstorm, the Husqvarna guide says to “please contact your local Husqvarna dealer.” This post does not add repair steps beyond the manufacturer’s list.
Placement rules that affect docking
The Husqvarna US placement guide gives a short set of rules. Each one below is quoted from the page, and each one affects how easily the mower finds and enters the dock.
- Level ground: “Ensure the charging station is on a level surface.” A tilted base changes how the mower lines up with the dock.
- A central spot: “Ideally, place the charging station in a central location of the mowing area.”
- Split yards: “If the work area has two parts separated by a steep slope, place the charging station in the lower section.”
- Sun and weather: “Position the charging station in an area with protection from the sun” or use the manufacturer’s mower house.
- Docking path: “Ensure the mower can enter, align, and reverse into the station without obstructions.”
- Order of work: “Do not secure the charging station to the ground until you have installed all the wires and verified that your installation works.”
The last rule is about timing. The page asks you to wait until the wires are in and the installation has been checked before you anchor the station to the ground. Until then, the station position can still change.
Roofs and shelters
Husqvarna’s guide allows some shelters, with conditions. For its wire-free EPOS systems, the page says: “You may place the charging station under a roof if the area in front of the charging station has clear sky view for the mower to connect to satellites.” That condition is about the satellite link, not the station signal. For any cover, shelter or roof, the page’s checklist asks for open sides and good ventilation, and it repeats the docking requirement: the mower must be able to enter, align and reverse without obstructions.
Clearance worked example
The placement page gives one number for free space: “Keep a minimum of 150 cm / 60 in. of free space to the right and left of the center of the charging station (B).” The table below uses only that figure and the arithmetic that follows from it.
| Clearance item | Centimeters | Inches | Source |
|---|---|---|---|
| Left of the station center | 150 | 60 | Husqvarna US placement guide |
| Right of the station center | 150 | 60 | Husqvarna US placement guide |
| Total side-to-side free width | 300 | 120 | Calculated from the two rows above |
| Front clearance | not stated | not stated | Husqvarna US placement guide |
| Rear clearance | not stated | not stated | Husqvarna US placement guide |
Formula: total side-to-side free width = left clearance + right clearance. Inputs: 150 cm and 150 cm, or 60 in and 60 in. Result: 150 + 150 = 300 cm, and 60 + 60 = 120 in. Converted, 120 in divided by 12 is 10 ft. That is the free width the guide gives beside the station center, counted outward on both sides.
The guide says to “Maintain free space around the front, sides, and rear based on your installation type.” It does not give a front or rear number. The worked figure above therefore covers only the side-to-side space, and the front and rear distances need your model’s manual or installation guide.
Safety checks at the station
The power supply plugs into an outlet, so the checks below are about heat, fire and damage. Start with the warning in the Toro installation section: “A malfunctioning or damaged charging station, low-voltage cable, or power supply could overheat and cause an increased risk of fire.” The same section says: “Do not install the charging station, low-voltage cable, or power supply near flammable or combustible materials.”
Husqvarna’s guide adds two rules for the power supply. First, “Do not put the power supply in a closed box.” Second, the page asks for “open sides and good ventilation to avoid heat build-up.” Check the airflow before you install any shelter around the station, because the same checklist applies to every cover.
If the power supply or cable is damaged, the Toro manual says to “disconnect the power supply, and contact an Authorized Service Dealer to replace it.” The pages we opened give no user repair steps for the power supply, so the safe course is to stop, disconnect and call the dealer.
How we chose
We opened six pages on 2026-10-22. Three are Husqvarna pages from its US support site, covering docking placement, the station light and the guide wire. Three are pages from Toro’s Haven operator manual, covering the charging overview, the docking and charging steps and the power supply installation. Each page names a docking, placement, light, cable or guide wire point directly. We did not use retail listings, review sites or forum posts for any step or safety statement.
Each source returned HTTP 200 on the date above. Quotes were checked word for word against the saved text. The Toro pages come from one manufacturer’s manual for one robotic mower line, and the Husqvarna pages describe Automower models. The rules may differ for another brand, and this post does not claim that every robot mower works the same way.
What we could not verify
- How the station signal is produced and how far the mower can pick it up. The pages name the signal and what disturbs it, but not its physics or range.
- Whether your model uses a guide wire, a boundary wire or neither. The Husqvarna guide says the requirement depends on the model, and the Toro manual we opened covers one model line.
- How long a return trip takes in a typical yard. None of the pages gives a docking time.
- Whether rain, wet grass or frost change docking. The pages we opened do not say whether weather changes the signal.
What the sources do not say
The sources we opened do not give a battery level for the return trip, so this post does not state one. They do not give a front or rear clearance number for the station, and they do not say how far a metal object must be before it affects the signal. They do not describe the signal method either, so this post does not explain how the mower detects the dock. A complete explanation would need the manual for your exact model.
FAQ
Does a robot mower always go back to the charger when the battery is low?
According to the Toro Haven manual, the mower goes to the charging station when the battery charge is too low for mowing, and when it reaches the end of a mowing task. The docking page says the mower automatically docks when the battery is too low. Check your model’s manual for the battery level that starts the trip, because the pages we opened do not give one.
Do I need a guide wire for the mower to find the station?
The Husqvarna guide wire page says that depending on the model, a guide wire may be required. It describes the guide wire as a way to bring the mower back to the station when needed, which reduces search time in complex yards. Look up your model before you decide, because the requirement depends on the model.
Why is my robot mower station light off?
Husqvarna’s US guide says a dark charging station light “can indicate cable or power supply issues.” Start by checking the outlet with a known working device, then reseat both ends of the low-voltage cable and inspect it for visible damage. If a storm passed through, look at the station as well. If the problem remains, the guide says to contact your local Husqvarna dealer.
What does a flashing blue light on the station mean?
The Husqvarna placement guide lists flashing blue as “No loop signal detected (troubleshooting required).” Solid blue means a weak boundary wire signal, and the mower may still operate normally. The sources we opened do not give a waiting time before troubleshooting starts, so the guide’s own next step is troubleshooting.
Can metal near the station stop the mower from docking?
Husqvarna says metal objects near the station may interfere with the charging station signal. Its examples are reinforcement bars, metal edging and coils of low-voltage cable. The guide does not give a safe distance. If the mower misses the dock, move the metal away from the station first and recheck the docking path.
Can I put the charging station under a roof or in the shade?
Yes, with conditions. The Husqvarna placement guide says to position the station in an area with protection from the sun, or to use the manufacturer’s mower house. For its wire-free EPOS systems, a roof is allowed if the area in front of the station has a clear sky view for satellite connection. For any cover, keep the sides open, let air move, and do not put the power supply in a closed box.
Bottom line
Decision rule: if the mower does not dock, check the station light, the outlet and the low-voltage cable ends first, then look at metal near the station and at the docking path before you change anything else.
